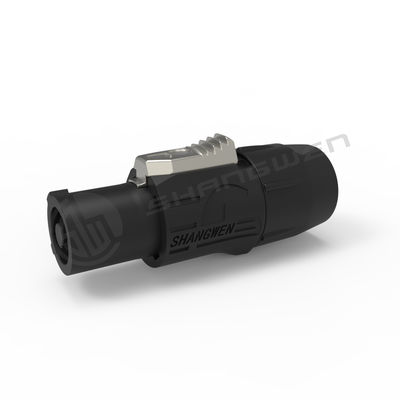

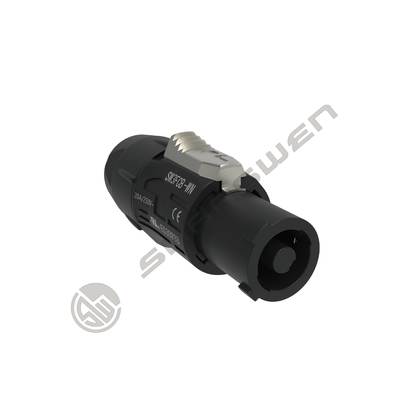

Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input

  • Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input
  • Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input
  • Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input
  • Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input
  • Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input
مكان المنشأ قوانغدونغ ، الصين
اسم العلامة التجارية SHANGWEN

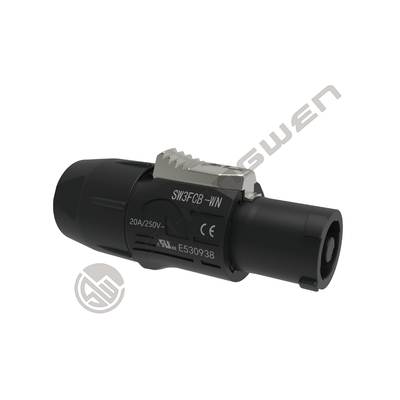

رقم الموديل SW3FCB1-WN
الحد الأدنى لكمية 10 قطع
الأسعار $2.30-4.60 / piece

اتصل بي للحصول على عينات مجانية وكوبونات

ال WhatsApp:0086 18588475571

(ويتشات): 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
تصنيف التيار 20A مستوى IP IP65
يكتب موصل شاشة LED طلب قوة
جنس أنثى الإلكترونيات الصناعية مُكَمِّلات
إبراز

Outdoor Waterproof IP65 Power Connector,IP65 Power Connector,LED Compatible Power Connector

,

IP65 Power Connector

,

LED Compatible Power Connector
اترك رسالة
منتوج وصف
Products Description
Power connector series-male powercon（input port）
This series is widely used in outdoor rental LED display power connection.

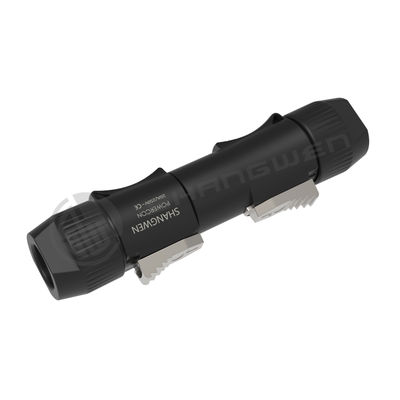

The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 0
Model : SW3MX-W ( outdoor use/input port )
☑The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑High current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65
☑Connect reliably
☑Use different color design to distinguish signal input and output, yellow input, black output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
1.Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 2
5.Installation reference drawing
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 4
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 6
Application area
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 8
Company Information
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 10
Patent & Certification
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 12
Exhibition activities
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 14
Packaging reference
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 16
Payment and logistics
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 18
FAQ
Outdoor Waterproof IP65 Power Connector Male Female LED Compatible 20A 250V 3P Socket Connector for Power Chassis Black Input 20
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
